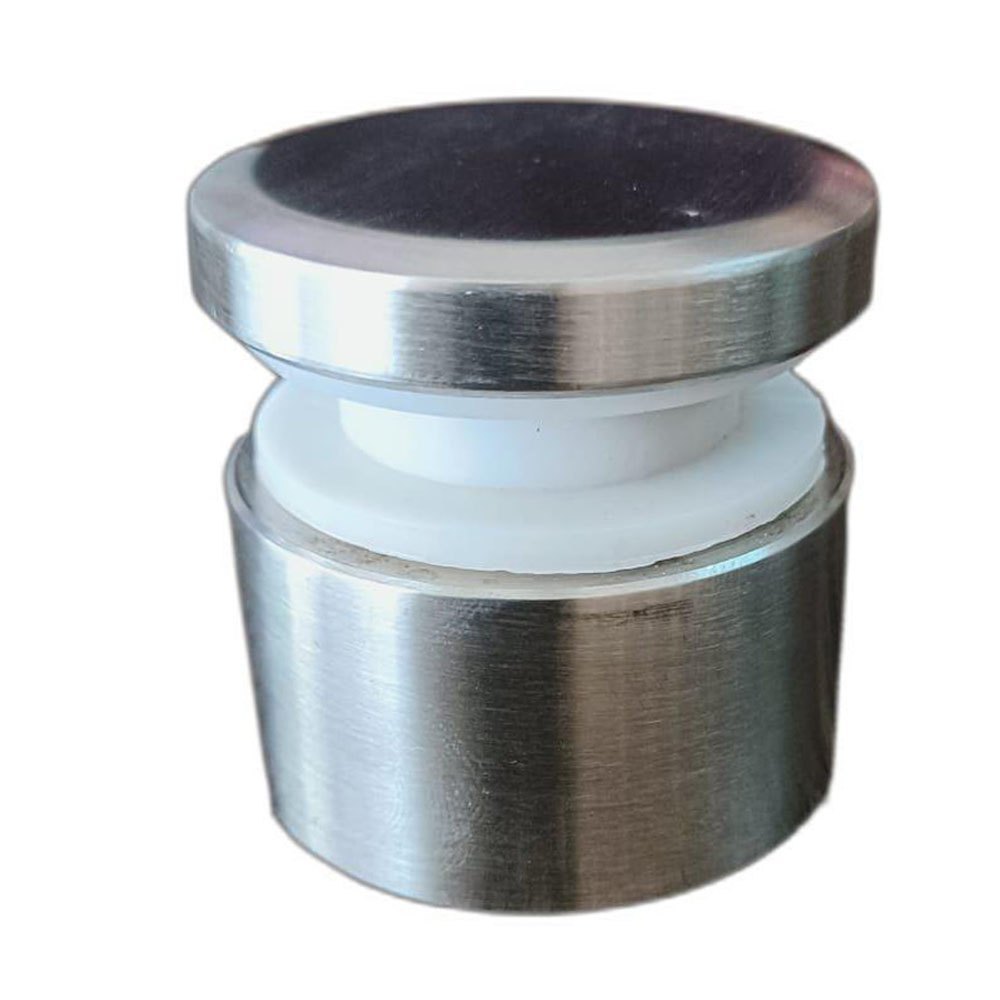

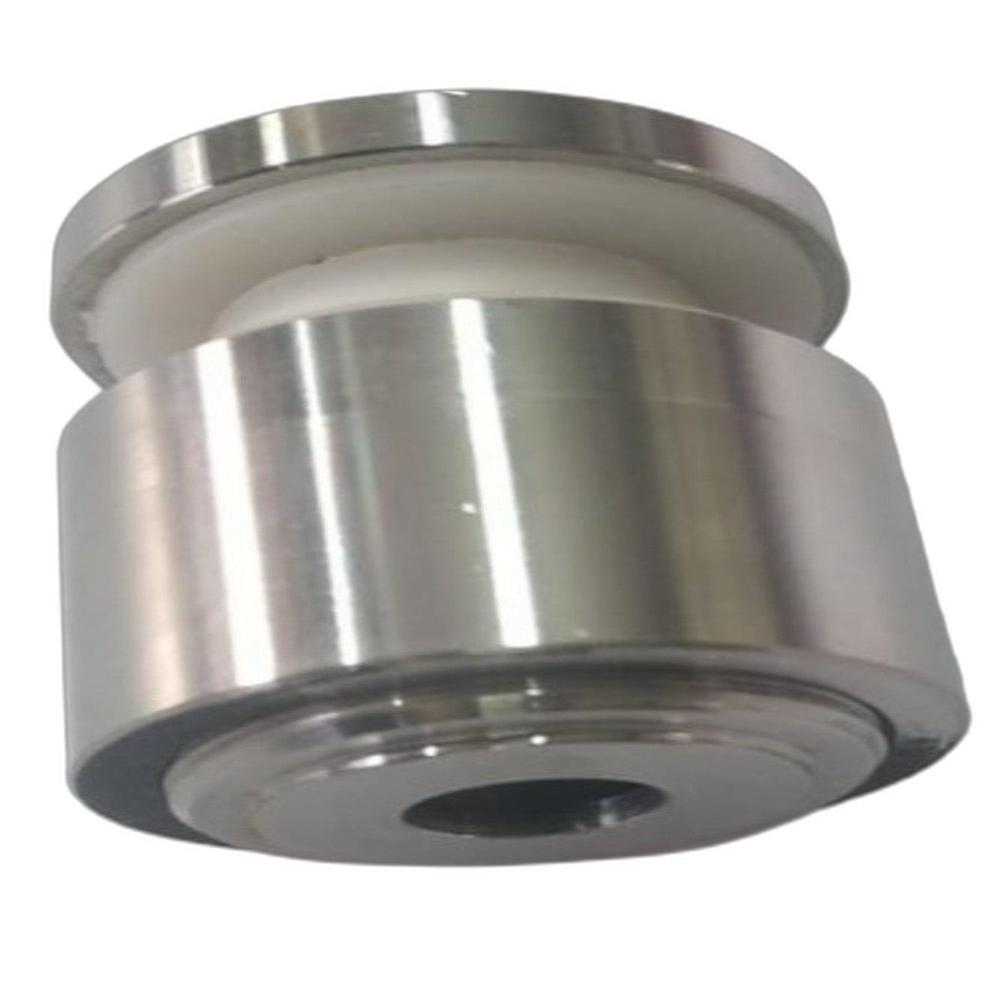

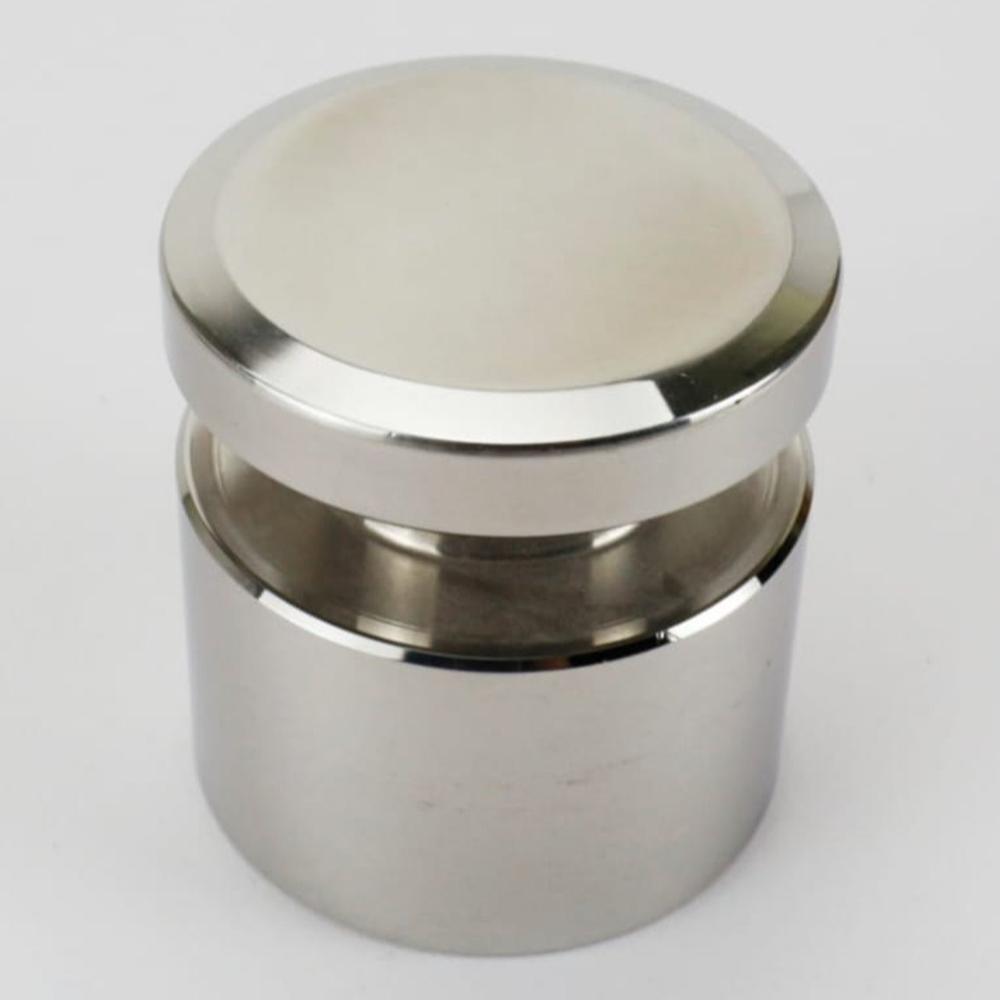

Glass Railing Point Fitting

Glass Railing Point Fitting Specification

Finish Type
GOLISI

Features
Corrosion Resistant, Rust Proof, Durable, Anti-Vibration

Strength
High Tensile Strength

Flat Tempered
Compatible

Tolerance
0.5 mm

Bent Tempered
Compatible

Transparency
Clear/Transparent Glass Supported

Structure
Single/Double Point Clamping

Glass Type
Toughened or Laminated Glass

Material
Stainless Steel (Grade SS 304/316)

Product Type
RAILING ACCESSORIES

Thickness
6-20 mm glass compatible

Weight
Approx. 150-350 g per fitting

Color
SILVER

Surface
Polished / Brushed Finish

Density
7.85 Gram per cubic centimeter(g/cm3)

Composition
Nickel-Chromium Alloy

Technique
CNC Machined

Pattern
Round Point Fitting

Cutout Requirement
Pre-cut glass holes (20-22 mm)

Temperature Range
-20C to +80C

Mounting
Wall, Floor, Ceiling or Spider (with adapter)

Weather Resistance
Suitable for Indoor and Outdoor Use

Installation
Bolt Fixing with Gasket for Glass Protection

Maintenance
Low Maintenance, Easy to Clean

Suitable Glass Thickness
Applicable for 8 mm, 10 mm, 12 mm, 15 mm, 19 mm

Accessories Included
Washer, Gasket, SS Bolt, Cover Cap

Diameter
Available in 25mm, 30mm, 50mm sizes

Application
Glass Railings, Balustrades, Partition Glazing, Glass Facades

Thread Type
M10 or M12 internal thread

Load Capacity
45 kg per point (max)

Glass Railing Point Fitting Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
5 Days

About Glass Railing Point Fitting

Glass Railing Point Fittings are specially designed hardware components used for fixing glass panels in railing systems, facades, canopies, and other architectural applications. Manufactured from high-grade stainless steel (SS 304/202), these fittings provide maximum strength, durability, and corrosion resistance, making them suitable for both indoor and outdoor use.

With a sleek and modern design, Glass Point Fittings ensure a secure installation while maintaining a frameless and elegant look. They are widely used in balconies, staircases, poolside railings, and commercial glass structures. Easy to install and maintain, these fittings are available in different sizes, finishes, and designs to match various architectural requirements.

Versatile Mounting and Easy Installation

This fitting supports wall, floor, ceiling, or spider mounting using simple bolt fixing, making it adaptable for varied architectural applications. The inclusion of washers, gaskets, and cover caps ensures your glass is protected and the installation process is expedited. With compatible internal M10/M12 threads and coverage for pre-cut glass holes, you can expect a straightforward setup.

Superior Durability and Materials

Manufactured from high-quality SS 304/316 stainless steel and refined with GOLISI finish, the fittings deliver robust corrosion resistance and remarkable tensile strength. Whether placed indoors or exposed to outdoor elements, their structure suits both flat and curved tempered glass, ensuring long-lasting safety and elegance.

Sleek Design with Wide Compatibility

Round point fittings, available in multiple diameters (25mm, 30mm, 50mm), cater to various glass dimensions and project requirements. Suitable for toughened or laminated, transparent glass, the polished/brushed surface offers a modern, sophisticated touch while supporting glass thicknesses from 6-20 mm.

FAQ's of Glass Railing Point Fitting:

Q: How do I install the Glass Railing Point Fitting for different mounting types?

A: Installation is straightforward. Select your mounting type (wall, floor, ceiling, or spider), ensure the glass has pre-cut holes (20-22 mm), align the fitting, and secure using the provided stainless steel bolts, gaskets, and washers to protect the glass. Detailed instructions are included for each installation type.

Q: What glass thickness and size does this point fitting support?

A: This fitting is compatible with glass panels between 6 mm and 20 mm thick, ideal for 8 mm, 10 mm, 12 mm, 15 mm, and 19 mm glass. It works with both flat and curved (bent) tempered or laminated glass, supporting clear and transparent glass options.

Q: When should I choose wall, floor, ceiling, or spider mounting?

A: The choice depends on your architectural design and structural support. Wall and floor mountings are commonly used for railings and partitions, ceiling mounting is popular for suspended designs, while spider mountings are suited for expansive facades or when additional support is necessary.

Q: Where can these point fittings be effectively used?

A: These fittings are ideal for glass railings, balustrades, partition glazing in offices or homes, and expansive glass facades. They are designed to perform well in both indoor and outdoor environments due to their resistance to weather and corrosion.

Q: What is the cleaning and maintenance process?

A: The fittings are low maintenance. Simply clean surfaces periodically with a soft, damp cloth and mild detergent. The polished/brushed stainless steel resists corrosion and rust, making upkeep minimal even in outdoor or humid conditions.

Q: What are the benefits of using SS 304/316 stainless steel fittings with GOLISI finish?

A: SS 304/316 provides superior corrosion and rust resistance, high tensile strength, and long-term durability. The GOLISI finish adds aesthetic value, and combined with anti-vibration features, these fittings ensure safety and longevity for your glass installations.
