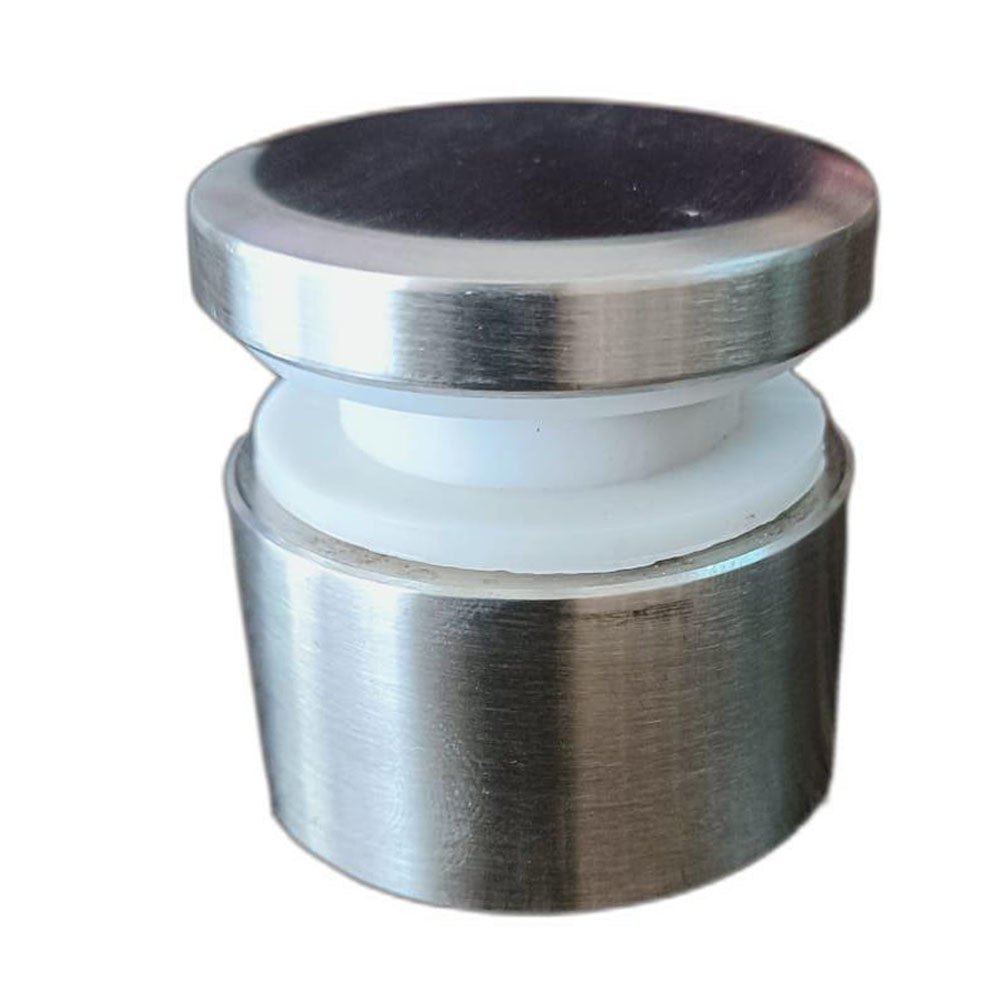

SS 304 Glass Point Fixing System

SS 304 Glass Point Fixing System Specification

Finish Type
GOLISI

Glass Type
Tempered / Laminated Glass

Features
Corrosion Resistant, Rust Proof, High Durability

Tolerance
0.2 mm

Structure
Solid, Integral Spindle with Cap and Studs

Flat Tempered
Supported

Strength
High Tensile Strength; Withstands Heavy Loads

Transparency
Compatible with Clear, Frosted or Tinted Glass

Bent Tempered
Supported

Material
Stainless Steel 304

Product Type
RAILING ACCESSORIES

Thickness
8mm to 25mm Glass Compatibility

Weight
Approx. 120g to 320g per fixing (Depending on size)

Color
SILVER GOLISI

Surface
Mirror Polished / Satin Brushed

Density
7.93 Gram per cubic centimeter(g/cm3)

Composition
18% Chromium, 8% Nickel, Balance Iron

Technique
CNC Machined and Forged

Pattern
Standard Round Head / Custom As Required

Application
Frameless Glass Facades, Canopies, Staircase Railings, Shower Cubicles

Packaging
Individual Poly Bag, Foam Protected, Box Packaging

Installation
Dry/Mechanical Fastening, No Welding Required

Diameter
Typically 25mm / 32mm / 38mm (Custom sizes available)

Maximum Glass Thickness Supported
25mm

Temperature Resistance
Up to 400C

Thread Size
M8 / M10 / M12

Mounting Type
Bolt-on / Through-Bolt

SS 304 Glass Point Fixing System Trade Information

Minimum Order Quantity
1000 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Day

Delivery Time
7 Days

Main Domestic Market
All India

About SS 304 Glass Point Fixing System

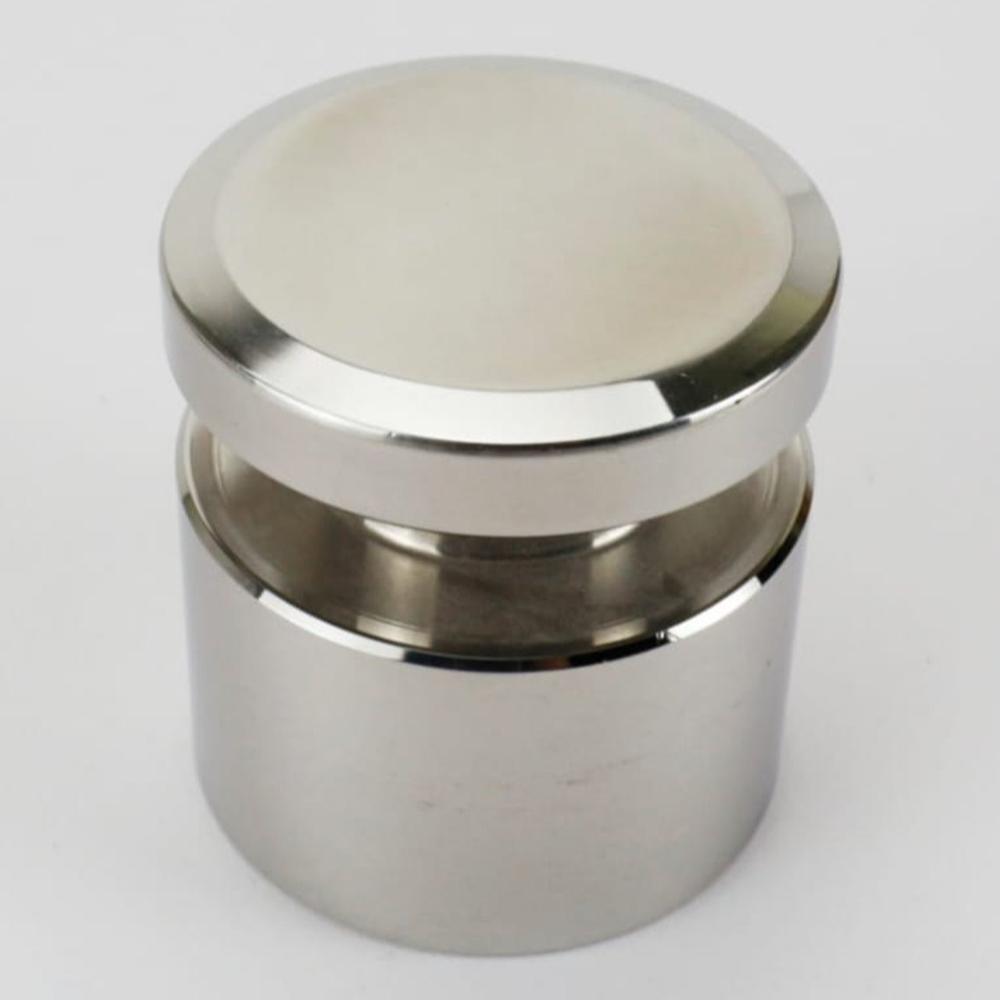

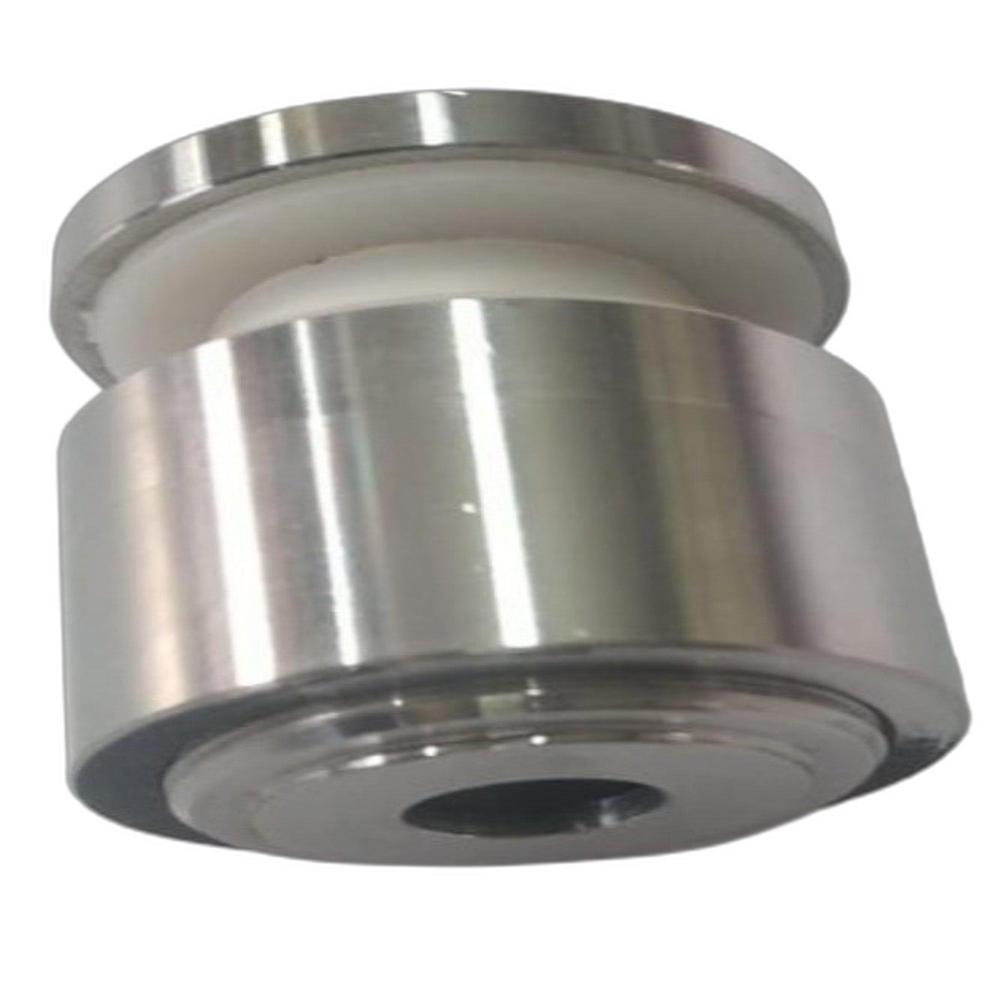

Glass Railing Point Fittings are specially designed hardware components used for fixing glass panels in railing systems, facades, canopies, and other architectural applications. Manufactured from high-grade stainless steel (SS 304/202), these fittings provide maximum strength, durability, and corrosion resistance, making them suitable for both indoor and outdoor use.

With a sleek and modern design, Glass Point Fittings ensure a secure installation while maintaining a frameless and elegant look. They are widely used in balconies, staircases, poolside railings, and commercial glass structures. Easy to install and maintain, these fittings are available in different sizes, finishes, and designs to match various architectural requirements.

High-Precision Construction and Versatility

Each point fixing system is precision-engineered using advanced CNC machining and forging techniques, providing a robust structure suitable for a wide range of architectural glass installations. With support for varying glass thicknesses and types, this system offers exceptional flexibility for custom and standard designs in both interior and exterior settings.

Elegant Finish and Long-lasting Durability

The SS 304 system is available in both mirror-polished and satin-brushed surfaces, delivering a sophisticated look while offering superior resistance to rust and corrosion. Its solid stainless steel composition, with 18% chromium and 8% nickel, ensures excellent performance even in demanding environmental conditions.

Easy, Non-welded Installation Process

Engineered for convenience, the fixing system employs a dry and mechanical fastening method, eliminating the need for welding. Each unit is individually packaged and foam-protected for safety and integrity during delivery, simplifying on-site handling and installation for professionals.

FAQ's of SS 304 Glass Point Fixing System:

Q: How does the SS 304 Glass Point Fixing System benefit frameless glass facade projects?

A: This system provides a secure and aesthetically pleasing solution for mounting glass panels without visible frames. Its solid construction and corrosion resistance ensure safety, durability, and longevity, enhancing the architectural appearance of facades.

Q: What glass types and thicknesses are compatible with the fixing system?

A: The fixing system is designed for flat or bent tempered glass and laminated glass, supporting thicknesses from 8mm to 25mm. It accommodates clear, frosted, or tinted glass, making it suitable for a variety of design requirements.

Q: Where can the glass point fixing system be installed?

A: It is ideal for both interior and exterior applications such as building facades, glass canopies, stair railings, and shower cubicles. Its high temperature resistance and robust finish make it suitable for commercial and residential spaces alike.

Q: What is the installation process for this system?

A: Installation involves mechanical fastening with bolt-on or through-bolt methods, using compatible thread sizes (M8, M10, M12). No welding is required, streamlining the process and ensuring a clean finish.

Q: When should custom sizes or finishes be considered for this fixing system?

A: Custom sizes or finishes should be selected when unique project requirements arise, such as irregular glass dimensions or a specific aesthetic. The manufacturer can accommodate special design requests to match project specifications.

Q: How does the material composition enhance performance?

A: Made from SS 304 stainless steel with 18% chromium and 8% nickel, this system provides excellent resistance to rust, corrosion, and temperature variations, ensuring high durability for prolonged use.
